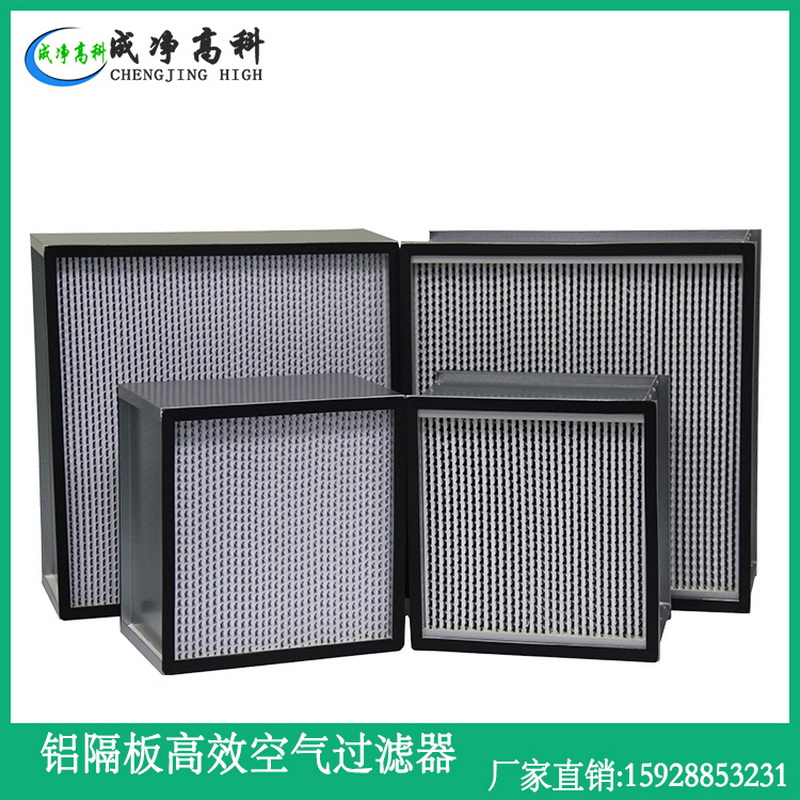

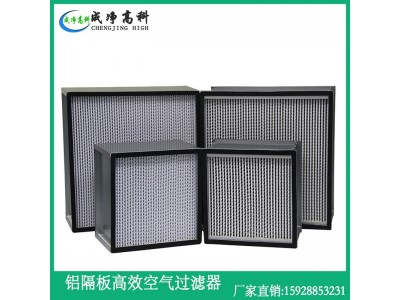

Hepa filter
特點Features
●效率高、阻力低、風速均勻性好
●適用于各種局部?jī)艋O(shè)備和潔凈廠房的末端凈化
●High efficiency, low resistance, good uniformity winds
●Applicable to various local purification equipment and clean workshop end purification
構成材料及運行條件
Materials and operating conditions
●框材：鍍鋅板外框或鋁合金外框
●External frane：Galvanized the casing outside the box or aluminum alloy
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：膠板紙
●Filter media：JiaoBanZhi
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用溫度、濕度：80℃、80%以?xún)?nèi)
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號 model |
外形尺寸 Outside dimensions (mm) |
額定風量 Rated air flow (m3/h) |
初阻力 Imitial resistance (Pa) |
效率（比色法） Efficiency (%) |
容塵量 Dust capacity (g) |
|
CJ-H3-D1 |
305×305×150 |
250 |
≤220 |
≥99.99 |
200 |
|
CJ-H3-D2 |
320×320×220 |
400 |
≤220 |
≥99.99 |
350 |
|
CJ-H3-D3 |
484×484×150 |
600 |
≤220 |
≥99.99 |
400 |
|
CJ-H3-D4 |
484×484×220 |
1000 |
≤220 |
≥99.99 |
600 |
|
CJ-H3-D5 |
726×484×220 |
1500 |
≤220 |
≥99.99 |
900 |
|
CJ-H3-D6 |
968×484×220 |
2000 |
≤220 |
≥99.99 |
1200 |
|
CJ-H3-D7 |
610×610×150 |
1000 |
≤220 |
≥99.99 |
600 |
|
CJ-H3-D8 |
915×610×150 |
1500 |
≤220 |
≥99.99 |
900 |
|
CJ-H3-D9 |
1220×610×150 |
2000 |
≤220 |
≥99.99 |
1200 |
|
CJ-H3-D10 |
630×630×220 |
1600 |
≤220 |
≥99.99 |
900 |
|
CJ-H3-D11 |
945×630×220 |
2400 |
≤220 |
≥99.99 |
1400 |
|
CJ-H3-D12 |
1260×630×220 |
3200 |
≤220 |
≥99.99 |
1800 |
|
CJ-H3-D13 |
610×610×292 |
2200 |
≤220 |
≥99.99 |
1200 |
|
CJ-H3-D14 |
915×610×292 |
3300 |
≤220 |
≥99.99 |
1800 |
|
CJ-H3-D15 |
1220×610×292 |
4400 |
≤220 |
≥99.99 |
2400 |
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
