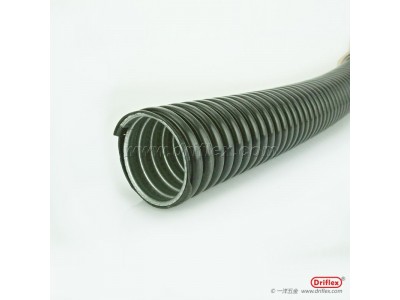

包塑金屬軟管
Model: VJ-11
Description:
鍍鋅鐵皮制成,表面PVC被覆.
輕質結構,彎曲性能及防水性.
用于大量生產型設備和工具機械,或其他狹小空間之電器配管區域.
耐溫范圍從-20度至+105度.
PVC包塑，可選擇黑色、灰色、橙色。
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| VJ-10 | 16 | 3/8" | 12.3 - 12.8 | 16.7 - 17.2 | 50 | 50 |
| VJ-11 | 20 | 1/2" | 15.8 - 16.3 | 20.2 - 20.7 | 65 | 50 |
| VJ-12 | 25 | 3/4" | 20.7 - 21.2 | 25.5 - 26.1 | 75 | 50 |
| VJ-13 | 32 | 1" | 26.0 - 26.6 | 31.6 - 32.2 | 100 | 50 |
| VJ-14 | 40 | 1-1/4" | 34.7 - 35.4 | 40.8 - 41.5 | 125 | 30 |
| VJ-15 | 50 | 1-1/2" | 40.0 - 40.6 | 46.6 - 47.2 | 150 | 30 |
| VJ-16 | 63 | 2" | 51.3 - 51.9 | 58.1 - 58.7 | 175 | 20 |
| VJ-17 | 75 | 2-1/2" | 63.0 - 63.6 | 71.8 - 72.4 | 200 | 10 |
| VJ-18 | 90 | 3" | 78.0 - 78.7 | 87.2 - 87.9 | 225 | 10 |
| VJ-19 | 100 | 4" | 101.6 - 102.6 | 111.2 - 112.3 | 275 | 5 |
適合配套鐵鍍鋅接頭、銅鍍鎳、不銹鋼或鋅合金接頭。
